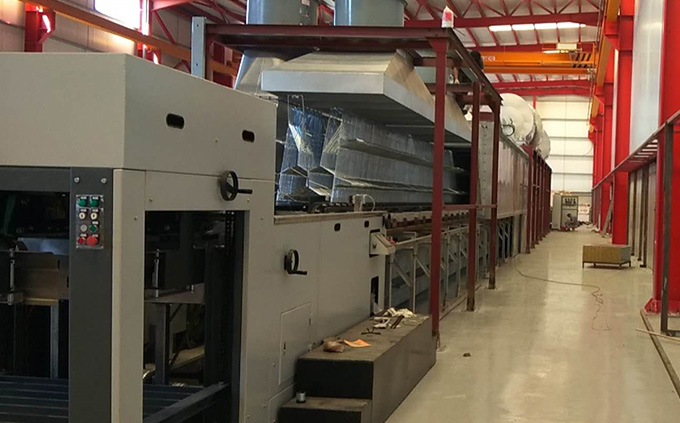

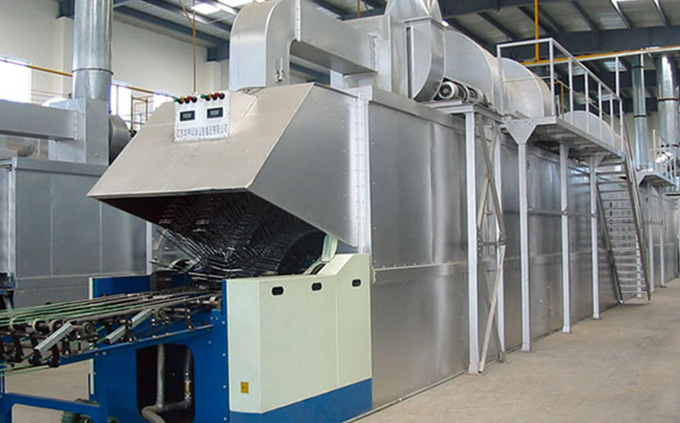

industrial drying oven
heating drying oven

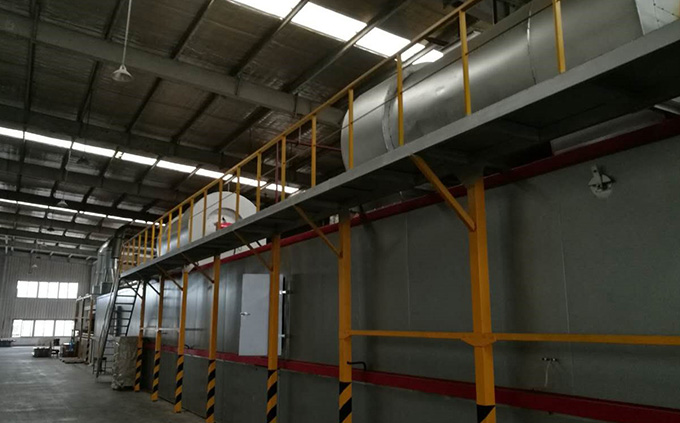

hot air drying oven

Drying Oven

As one of the professional industrial drying oven manufacturers in China, RUIYUAN continues technological innovation to create the best value for all customers and provides a suitable price for industrial drying ovens. RUIYUAN's conventional oven for drying is mainly used to dry after the metal printing or coating. Fast and gentle heating stages and effective cooling have always been the benchmark for paint drying ovens. Reliable and damage-free drying are guaranteed even at high speeds. This efficiency can be enhanced with RUIYUAN's conventional plate drying oven.

Get Quote

Industrial Drying Oven Specification


CONFIGURATIONS27M30M33M
Maximum speed6000 sheets/h6000 sheets/h6000 sheets/h
Minimum oven working temp230℃230℃230℃
The length of oven27m30m33m
The total length of equipment42.95m45.95m48.95m

Time for sheets baking in baking zone
Speed of 4800 sheets/h10minute11minute12minute
Speed of 5100 sheets/h9.4minute10.3minute 11.3minute
Speed of 5400 sheets/h8.9minute9.8minute10.7minute
speed of 6000 sheets/h8minute8.8minute9.6minute
Maximum sheet size1143x965mm1143x965mm1143x965mm
Minimum sheet size710x508mm710x508mm710x508mm
Sheet thickness standard 0.15-0.4m0.15-0.4m0.15-0.4m
FuelLPGLPGLPG
Cooling zone4.66m6.96m6.96m
Quantities of heating chamber222
Cooling zone air intake volume50000m³/h50000m³/h50000m³/h
Cooling zone air outlet volume55000m³/h55000m³/h55000m³/h
Air supply: not exceed4500m³/h4500m³/h4500m³/h
Front exhaust air volume about 10000 m³/habout 10000 m³/habout 10000 m³/h
Rear exhaust air volumeabout 4000 m³/habout 4000 m³/habout 4000 m³/h
Total power consumptionabout 58.1 kwabout 64.1 kwabout 75.1kw


RUIYUAN Industrial Drying Oven Features and Advantages

1) The wall panels on both sides of the industrial drying oven body are thickened to 150mm, The connection between the wallboard of the oven body and the above and bottom boards using Company's patented technology: embedded connection;Avoid coating and other volatile leakage pollution surface;

2) The drying room recirculating fan adopts frequency conversion speed regulation, to ensure that the drying room cycle temperature uniform conditions to reduce the buffeting, cooling for the air-cooled structure, after the delivery for 5 narrow-band structure, both sides of the narrow-band for adjustable;

3) The upper and lower guide rail of the industrial drying oven adopts the card connection structure, convenient for production, installation and replacement, And install the never off track device, use without worries;

4) Wickets conveyor using high strengthimitation imported chain, Insert design to increase the tilt Angle, our industrial drying oven has high wear resistance and dust –free;

5) Oven front drive adopts the latest design:the wall panels are designed to be linear and flat, convenient for users to take samples of iron; The iron inlet part of the front drive is designed with extension type, make the iron feed more stable at high speed, smoother;

6) Oven rear transmission adopts the latest planar transmission structure, avoid the workpiece out of the shelf conveyor belt produced by the shift,Thus affecting the quality of the product;

7) The front and rear conveyor roller of the industrial drying oven line using company's patented technology: synchronized timing belt transmission,Make the iron in and out smoother and smoother;

8) Ovens before and after the conveyor belt using the same industry unique anti-slip, special conveyor belt for abrasion prevention, And designed to the latest two-side adjustable, suitable for various specifications of iron;

9) Recycling fans and the front wind is designed for frequency conversion, which can be adjusted according to the thickness of the width of the appropriate air volume and exhaust gas volume, can enter low-speed insulation state when no workpiece, Energy ;

10) Oven burner uses original imported proportional control burner, designed to be enclosed. The air volume can be automatically adjusted according to the combustion air consumption, in order to reduce energy consumption;

11) Oven control electrical components are all imported famous brands, the drying room and the main machine electronic shaft and mechanical connection to the main machine is our responsibility;

12) Oven feeding and discharging are controlled by patented servo system, making the iron feed more stable at high speed;

13) The cooling zone of the industrial drying oven is added with stainless steel and anti-corrosion cleaning protective guard

14) Equipped with high flower iron frame, suitable to walk up to 980mm, using low carbon flat steel production, nickel plating with chromium technology, double-sided laser welding technology.

15) Increase the rear exhaust air preheating flower rack device. The heat discharged from the air after the drying room is recovered to the lower part of the drying room to preheat the flower stand, thus achieving the effect of energy saving.

16) Increase the automatic detection function of stop combustion engine and motor.

17) The bridge of metal coating machine and drying room is lengthened to 2500mm to improve the leveling effect of the product.

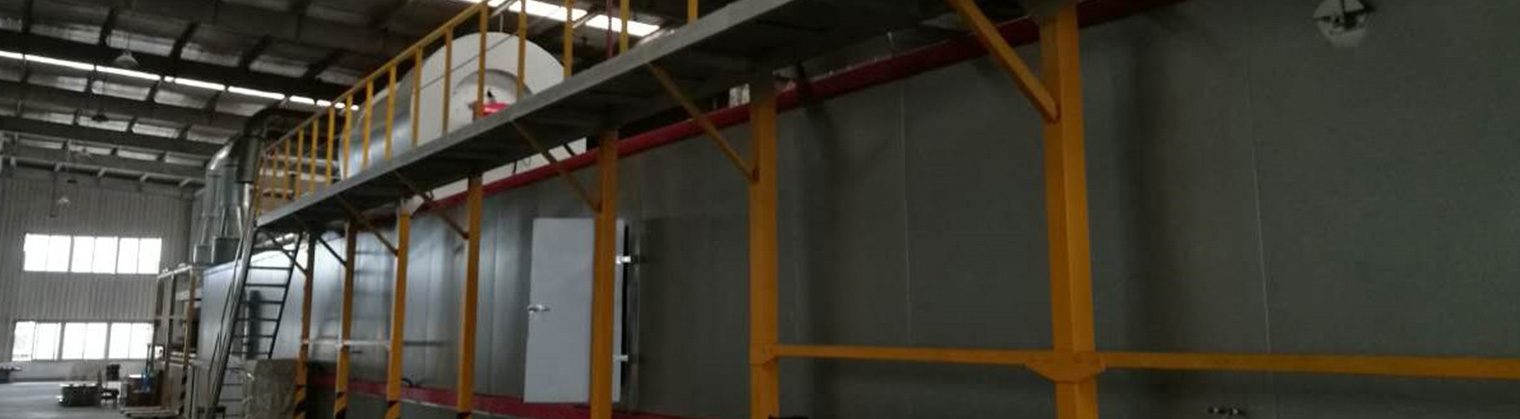

Industrial Drying Oven Technical Performance

  • Our industrial plate drying oven guarantees the printing products reliable and damage-free drying even at high speeds

  • Multi-layer structure wallboard for fewer energy consumptions is offered with extra thicker boards within 150mm-220mm, 2-layer for top and bottom plate, and 3-layer for oven body.

  • Wickets used in paint drying rooms are coated with chrome. (Three times are nickels processing and the last one is coated with chrome) and hollow structured to facilitate more stable transmission and heat absorption.

  • Wickets conveyor of paint drying machines using high strength chain, the roller (our patented product) increased to 5 pcs/meter, it has high wear resistance and dust-free.


Industrial Drying Oven Technical Performance
