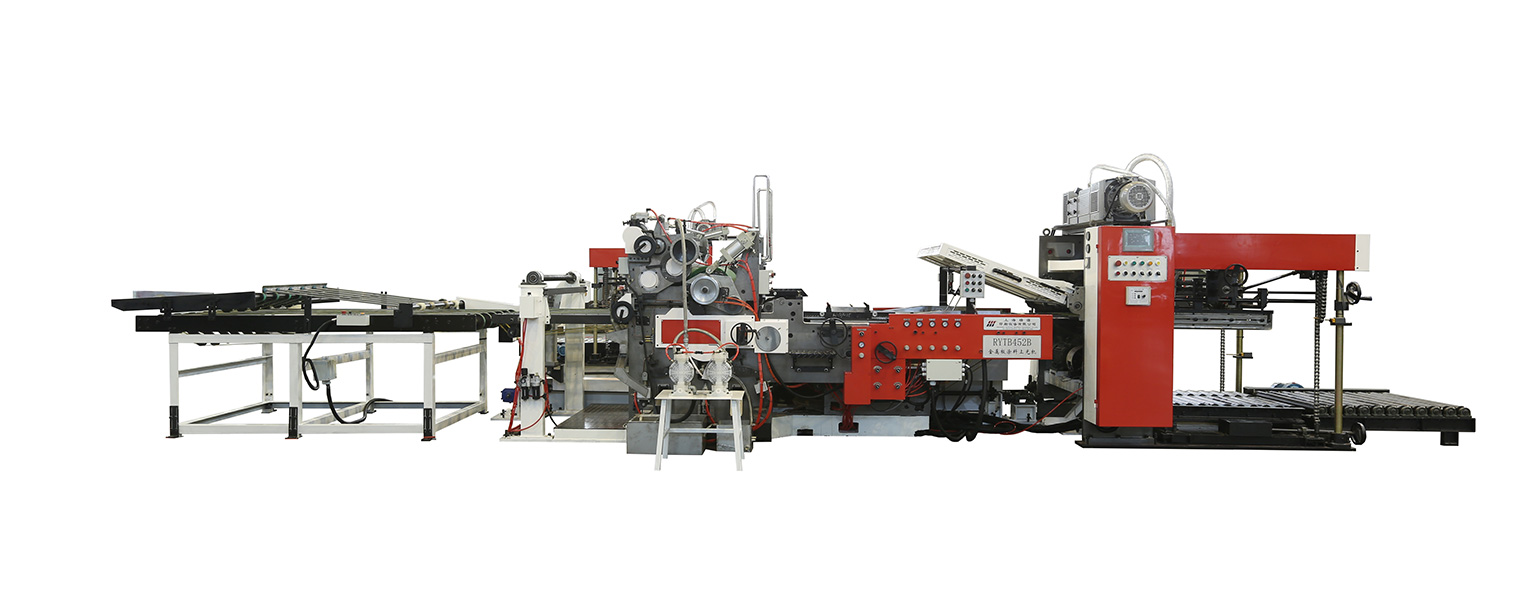

RYTB 452B Series Metal Coating Machine

Coating Machine
Metal Coater

RYTB452B serial coating machine is suitable for tinplate, aluminum, and other metal coating and varnish.  As for tinplate coating, we also have professional tin plate printing machine for sale. This equipment is available not only as a free-standing coating machine with an automatic feeder for interior and exterior coating but also as an inline coater with metal printing for varnishing.

RYTB 452 Series Coating Machine Specifications

CONFIGURATIONSRYTB452BRYTB2452B
Maximum coating speed6000 sheets/h6000sheets/h
Maximum sheet size1145×950mm1145×950mm
Minimum sheet size standard712×508mm712×508mm
Sheet thickness standard 0.15-0.5mm0.15-0.5mm
Height of infeed table 916mm916mm
Rubber-coating roller(composition)324~339(while plain coated)
329±0.5(while spot coated)
324~339(while plain coated)
329±0.5(while spot coated)
length of rubber roller1145mm1145mm
Distributor rollerφ220x1145mmφ220x1145mm
Duct rollerφ220x1145mmφ220x1145mm
Power of the main motor11 kW11 kW
The capacity of the air pump80+100(m³/hr)80+100(m³/hr)
Dimension of the machine(LxWxH) 7195x2200x1936mm 14195x2200x1936mm


  • RYTB 452B Series Metal Coater Technical Performance

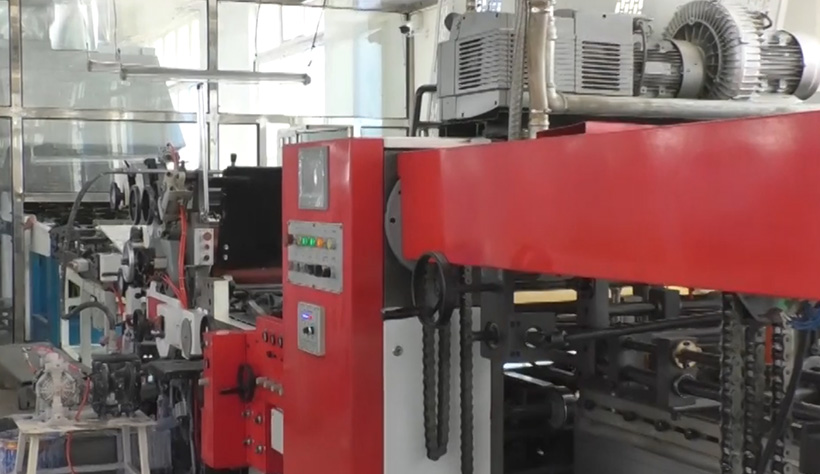

    RYTB 452B Series Metal Coater Technical Performance
    • This machine features high precision, versatile applications, and extended long service life.

    • Accurate cross and longitudinal stenciling guarantee ultimate spot coating quality.

    • A Double-scrapper structure dramatically raises cost efficiency.

    • Rigid manufacturing along with high-quality material extends service life.

    • Compatible applications between conventional solvent and water-based lacquers and potentially demanding UV lacquer.


  • RYTB 452B Series Metal Coater Highlights
    RYTB 452B Series Metal Coater Highlights

    Cost Efficiency

    1. Users can switch between single(steel blade) and second blade (nylon blade) modes subject to demands for best evenness and cost-saving.

    2. Rubber-coated cylinders controlled with air clutch easily finish installing and dismantling within 2-5 minutes.

    3. Pneumatic diaphragm pump is applied to extend the use of life with higher security and easier operation.

    Easy Operation

    1. Motorized feeder allows easy operation.

    2. Handwheels on one side allow synchronized adjustment of sheet thickness.

    3. Installation and dismantle of rubber-coated cylinder side lay registration scrapper blade pressure between the coating and impression cylinders.

    High Precision

    1.452B coating and pressure cylinder are controlled individually by the motors.

    2. Coating and pressure cylinders with a special grinding process boosts excellently smooth coating layer and leads to lacquer saving.

    3. Pusher head controlled with electrical magnetic clutch permits fine registration on operation side.
