Tin Plate Printing Machine
Tin Printing Machine

Tinplate Printing Machine

As a professional tin printing machine manufacturer, Ruiyuan provides high performence tin printing machine for sale. Tinplate printing packaging due to its good sealing, preservation, light avoidance, robustness, and unique metal decorative charm, determines that the tin sheet printing machine has a wide range of coverage in the packaging container industry, is the international general packaging varieties. Tinplate packaging decorated by our tinplate printing machines is full of innovation. Three-piece cans are often called tinplate three-piece cans, commonly used for food, beverage, dry powder, chemical products, aerosol products, and other canned containers. Contact us for more information of tin printing machine and other metal printing press.

Get Quote

Tinplate Printing Machine Advantages

  • Printing Quality Improvement

    Dot reduction degree more than 98%

    Value K: yellow (Y) ≥ 30%

    Magenta (M) ≥ 34%

    Cyan (C) ≥ 38%

    Black (BK) ≥ 45%

  • Precision Improvement

    Overlapping line precision ≤ 0.02mm

    Minimum adjustment precision automatic system 0.01mm

    Single adjustment deviation ≤ 0.005mm

  • Field Density

    Yellow (Y) for 0.85 ~ 1.15,

    Magenta (M) for 1.20 ~ 1.50,

    Cyan (C) for 1.30 ~ 1.60,

    Black ( BK) for 1.60 ~ 1.90

  • Key Indicators

    50% dot expansion rate of ≤ 15%;

    2% -98% printing dot step reduction

    The highlighted part of the 2% dot is not lost

    Dark tone 98% dot does not paste plate

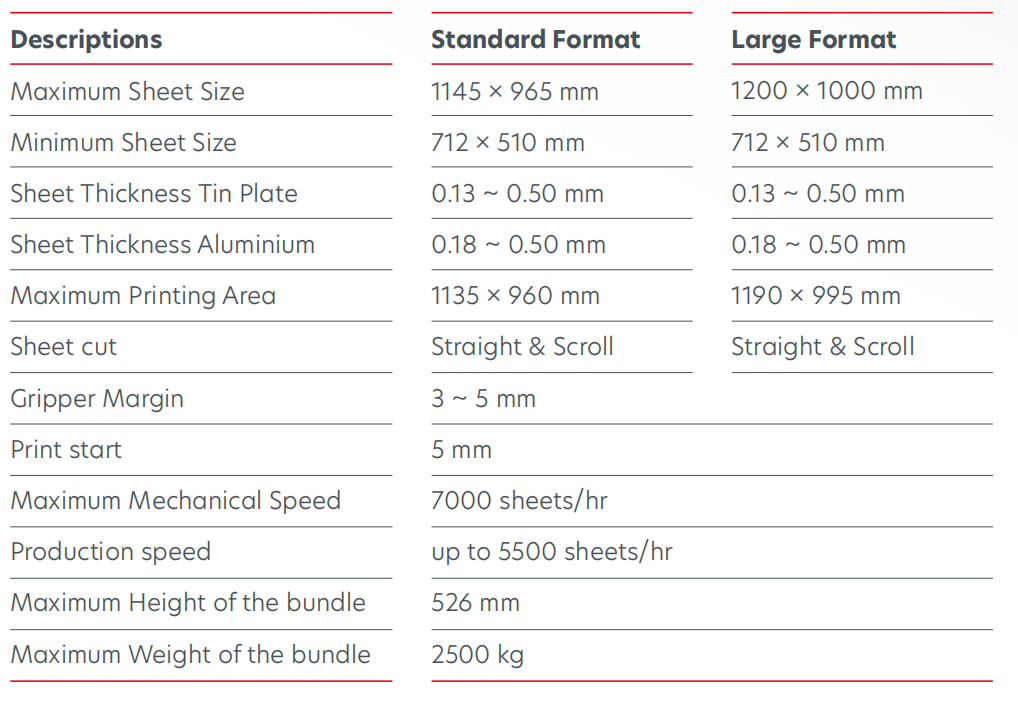

Tin Printing Machine Technical Data

Maximum sheet size1145×950mm1145×950mm1145×950mm
Minimum sheet size standard712×510mm712×510mm712×510mm
Sheet thickness standard 0.15-0.4mm0.15-0.4mm0.15-0.4mm
Maximum printing area 1135×945mm1135×945mm1135×945mm
Size of printing plate1160×1040×0.3mm1160×1040×0.3mm1160×1040×0.3mm
Size of pre-bar blanket1175×1135×1.9mm1175×1135×1.9mm1175×1135×1.9mm
Gripper margin3-5mm3-5mm3-5mm
Maximum mechanical speed5000 sheets/hr
Maximum printing speed depending upon printing shop conditions and ingoing material quality
Height of infeed table 916mm916mm916mm
Maximum weight of feeder pile2.0  (ton)2.0  (ton)2.0  (ton)
Power of main motor17(kw/unit)x217(kw/unit)x417(kw/unit)x6
Capacity of air pump80+100(m³/hr)80+100(m³/hr)80+100(m³/hr)
Dimension of  machine(LxWxH) Length without inspection table10750x3700x2460mm 19050x3700x2460mm 26914x3700x2460mm
Total connected load of machine without dryers56kw104kw148kw
Running pressing of air cylinder0.6-0.8Mpa
Compressed air ≥140m³/h

Maximum mechanical speed6500 sheets/hr Depending on production condition
K Valueyellow (Y) ≥ 30%
magenta (M) ≥ 34%
cyan (C) ≥ 38%
black (BK) ≥ 45%

How Does a Tinplate Printing Machine Works?

A Tinplate Printing Machine is a specialized piece of equipment utilized for the purpose of imprinting designs or labels onto tinplate materials. These materials are commonly used in the packaging of various goods, including food items, beverages, oils, and more. The following is a detailed, professional explanation of its operation:

Design Input: The initial step involves the input of the desired design into the machine’s sophisticated computer system. This design could encompass a wide range of graphics, from company logos to detailed product information.

Ink Preparation: Subsequently, the machine is equipped with the necessary ink colors. Contemporary machines typically employ a four-color process (comprising cyan, magenta, yellow, and black), which has the capability to blend these fundamental colors to generate a broad array of additional colors.

Plate Preparation: The tinplate material is then introduced into the machine. It is generally supplied from a substantial roll and cut into the requisite sizes.

Printing: The machine proceeds to apply the ink to the tinplate material. This is frequently accomplished using a technique known as offset printing. In this method, the ink is initially applied to a rubber blanket and subsequently transferred onto the tinplate, resulting in a crisp, high-definition image.

Drying: Following the application of the ink, the tinplate is conveyed through a drying section. This ensures the ink is properly set and resistant to smudging.

Inspection: The printed tinplates are then subjected to a rigorous quality inspection. Any tinplates that exhibit printing errors are promptly removed.

Packaging: The final stage involves the packaging of the printed tinplates and their preparation for shipment.

Tinplate Printing Machine Applications

Tinplate printing machines are used for printing designs and patterns on tinplate sheets that are commonly used for making food and beverage cans, paint cans, aerosol cans, and other metal packaging. Some of the applications of tinplate printing machines include:

Food and Beverage Cans: Tin printing machines are widely used for printing designs and logos on food and beverage cans. The tin plate printing machine ensures that the printing is of high quality, durable, and resistant to scratches and other damages.

Aerosol Cans: Tinplate printing machines are also used for printing on aerosol cans. These cans are used for storing and dispensing a wide range of products, including household and automotive cleaners, air fresheners, and insecticides.

Paint Cans: Tinplate printing machines are used for printing on paint cans that are used in the construction and automotive industries. Tin can printing machine ensures that the printing on tinplate is of high quality, legible, and resistant to abrasion.

Metal Packaging: Tin printing machines are also used for printing on other metal packaging, such as metal drums and containers used for storing and transporting chemicals, oils, and other industrial products.

  • Tin Plate Printing Machine For Food Cans
    Food Cans

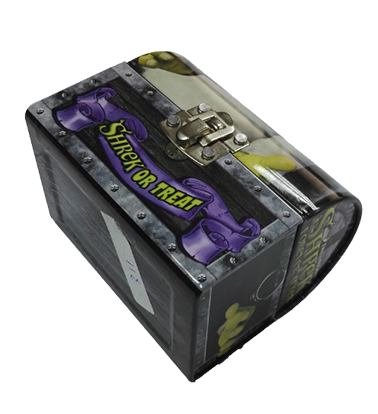

  • Tin Plate Printing Machine For Piggy Bank
    Piggy Bank
  • Tin Plate Printing Machine For Cosmetics Cans
    Cosmetics Cans

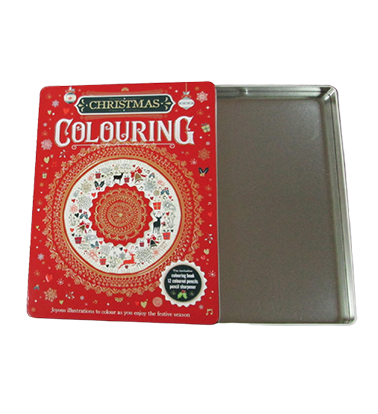

  • Tin Plate Printing Machine For Gift Cans
    Gift Cans

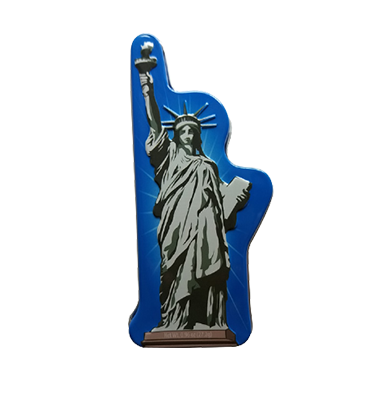

  • Tinplate Printing Machine For Commodity Cans
    Commodity Cans

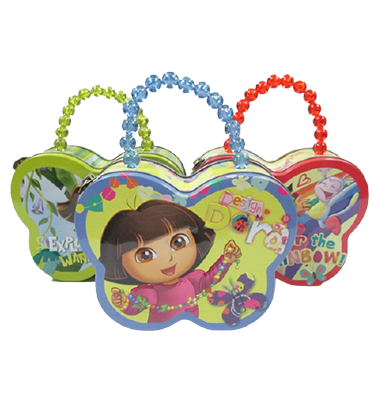

  • Tinplate Printing Machine For Toys

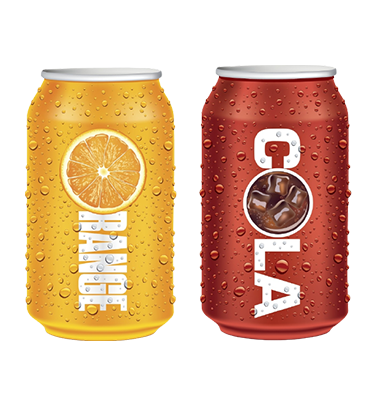

  • Tinplate Printing Machine For Beverage Cans
    Beverage Cans
  • Tinplate Printing Machine For Daily Chemical Products Cans
    Daily Chemical Products Cans
