Intelligent RYYT 453 Series Metal Printing Machine

4 Color Printing Machine
5 Colour Printing Machine

China's first intelligent metal printing machine comes from RYYT 453 series. Especially the upgraded 453 series achieve full automation, the series of metal printing press is intelligence, digital, and information, provide users with high efficiency, high performance, low cost of automatic metal printing production line. RYYT 453 series include 1-colour, 2-color, 3-colour, 4-colour, multi-color metal printing presses and as one of the metal offset printing presses manufacturers we sell 1-color, 2-color, 3-colour, 4-colour, multi-color machines at a suitable price.

RYYT 453 Series Color Printing Press Specifications



CONFIGURATIONSRYYT2453W/2-COLORRYYT4453/4-COLORRYYT6453/6-COLOR
Maximum sheet size1145×950mm1145×950mm1145×950mm
Minimum sheet size standard712×510mm712×510mm712×510mm
Sheet thickness standard 0.15-0.4mm0.15-0.4mm0.15-0.4mm
Maximum printing area 1135×945mm1135×945mm1135×945mm
Size of printing plate1160×1040×0.3mm1160×1040×0.3mm1160×1040×0.3mm
Size of pre-bar blanket1175×1135×1.9mm1175×1135×1.9mm1175×1135×1.9mm
Gripper margin3-5mm3-5mm3-5mm
Maximum mechanical speed5000 sheets/hr
Maximum printing speed depending upon printing shop conditions and ingoing material quality
Height of infeed table 916mm916mm916mm
Maximum weight of feeder pile2.0  (ton)2.0  (ton)2.0  (ton)
Power of main motor17(kw/unit)x217(kw/unit)x417(kw/unit)x6
Capacity of air pump80+100(m³/hr)80+100(m³/hr)80+100(m³/hr)
Dimension of  machine(LxWxH) Length without inspection table10750x3700x2460mm 19050x3700x2460mm 26914x3700x2460mm
Total connected load of machine without dryers56kw104kw148kw
Running pressing of air cylinder0.6-0.8Mpa
Compressed air ≥140m³/h



CONFIGURATIONSNew generation RYYT 4453/4-COLOR
Maximum mechanical speed6500 sheets/hr Depending on production condition
K Valueyellow (Y) ≥ 30%
magenta (M) ≥ 34%
cyan (C) ≥ 38%
black (BK) ≥ 45%


Standard Configuration of RYYT 453 series Optional Configuration of RYYT 453 series

Standard Configuration of RYYT 453 series

Electric Stack Adjustment Mechanism (including Automatic Taking Out Pallet) Of Metal Decorating Mach
Electric stack adjustment mechanism (including Automatic taking out pallet)
Electrical Feeder Of Metal Decorating Machine
Electrical feeder
Feeder Empty Sheet Sensor Of Metal Decorating Machine
Feeder empty sheet sensor
Cleaning Reel Of Metal Decorating Machine
Cleaning reel
Scroll Side Lay Of Metal Decorating Machine
Scroll side lay
Auto Pusher Sheet Size Adjustment Of Metal Decorating Machine
Auto pusher sheet size adjustment
Gripper Lay Remote Control Device Of Metal Decorating Machine
Gripper lay remote control device
Inkpro-i Remote Control Inking System Of Metal Decorating Machine
INKPRO-I Remote control inking system
Fan-type Anti-ink-emulsified Blowing System Of Metal Decorating Machine
Fan-type anti-ink-emulsified blowing system
Electromagnetic Clutch Formula Oscillate Position Switching System Of Metal Decorating Machine
Electromagnetic clutch formula oscillate position switching system
Ghost Reduce Roller Of Metal Decorating Machine
Ghost reduce roller
Auto Ink Roller Washing Device Of Metal Decorating Machine
Auto ink roller washing device
Alcohol Damping System Of Metal Decorating Machine
Alcohol damping system
Inspection Table Of Metal Decorating Machine
Inspection table
Aluminum Blanket Bar Of Metal Decorating Machine
Aluminum blanket bar

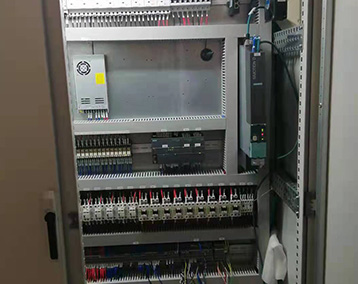

Electrical Cabinet Of Metal Decorating Machine
Electrical cabinet

Optional Configuration of RYYT 453 series

Grid Voltage Change Of Metal Decorating Machine
Grid voltage change

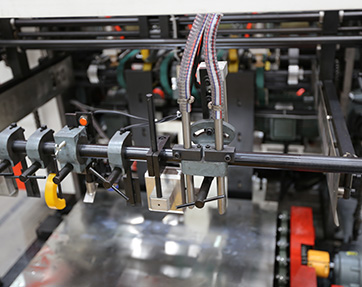

Aluminum Sheet Feeding Blower Of Metal Decorating Machine
Aluminum sheet feeding blower

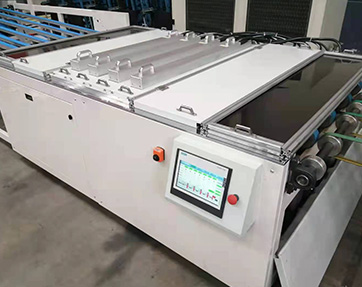

UV Dryer Of Metal Decorating Machine
UV dryer

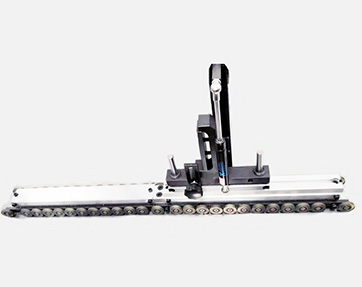

Magnetic Anti-back-flow Device Of Metal Decorating Machine
Magnetic anti-back-flow device

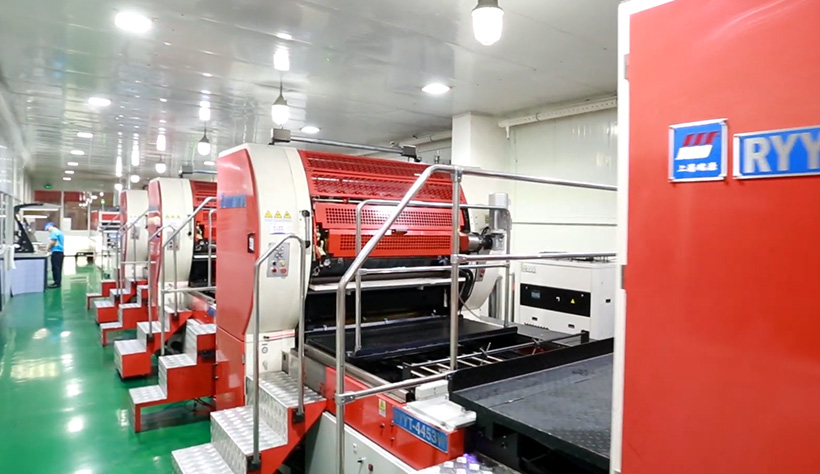

  • RYYT 453 Series Multi Color Printing Machine Main Technical Performance
    RYYT 453 Series Multi Color Printing Machine Main Technical Performance

    Centralized control system

    Central remote console, centralized control, simple and efficient operation.

    Automatic sheet size change

    Input the sheet size in the centralized control system, press the “Confirm” button to finish the multi-printing adjustment of the pusher and side lay. Also, can a fine adjustment of the side lay in running mode, reduce manpower and higher efficiency.

    Gripper front lay remote control device

    The centralized control system can accurately and fast finish the fine adjustment of the front lay in running mode, it also can improve the efficiency.

    INKPRO Ink fountain remote control system

    Directly presetting the CIP3 date into the ink console, automatically preset the ink quantity. Then complete the ink set, through the 36 ink color sections to remotely adjust the quantity of ink in each area. The memory storage function of multiple order data presetting and read the setting data is necessary automatically. In addition, it can complete the closure of the whole ink key, also has the function with a one-button sheet closing system. Saving the time of ink mixing, with higher efficiency, reduce the chromatic aberration of different batches

    Auto ink wash-up device

    Finish the multi-printing press units or single-printing press unit ink wash up by one button, saving the cost of cleaning agent, reduce workforce, saving the washing time by about 35 minutes with high efficiency and green environmental protection

    Alcohol dampening system

    composed of an alcohol box with temperature control function, water rollers, and a heat preservation sink with liquid level detection function, ensuring uniform, stable and reliable water on the layout

    Electric feed

    Through the button and electric motor control, the feeder can be adjusted to move left and right, forward and backward to achieve the optimal feeding position, which saves manpower and is easy to operate.


  • Innovative Solutions of the Upgraded 453 Series

    Digital sheet-change system by one button

    Input the sheet size and thickness into the centralized control system, directly set up by one button: finish from the feeder - in feed - main motor - UV curing - stacker's all the gauge distance and printing cylinders press adjustment within 3 minutes, saving 37 minutes by the sheet-change system, with higher efficiency.

    INKPRO Ink fountain remote control system

    Directly presetting the CIP3 date into the ink console, automatically preset the ink quantity. Then complete the ink set, through the 36 ink color sections to remotely adjust the quantity of ink in each area. The memory storage function of multiple order data presetting and read the setting data is necessary automatically. In addition, it can complete the closure of the whole ink key, also has the function with a one-button sheet closing system. Saving the time of ink mixing, with higher efficiency, reduces the chromatic aberration of different batches.

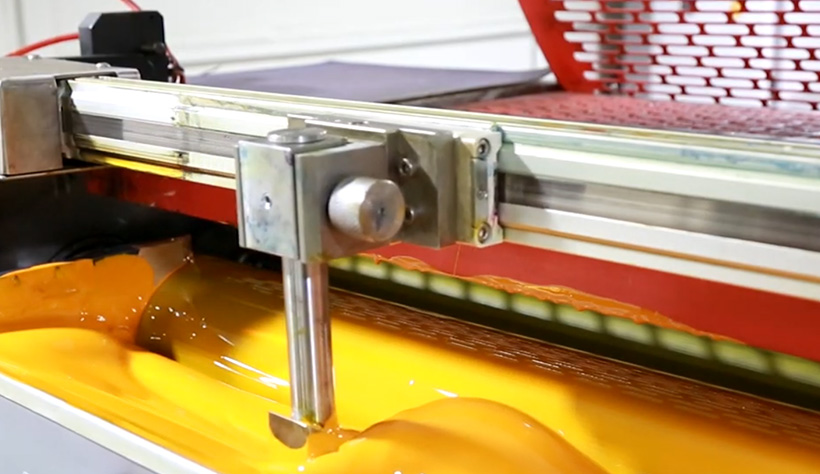

    Auto ink mixing device

    Mixing ink device controlled by the centralized control system to mix ink automatically. Improve ink fluidity, reduce workforce, ensure ink uniform, ink more stable in normal production.

    Centralized control of dampening water system

    Real-time detection and automatic adjustment of the alcohol concentration of dampening, temperature, and conductivity data to keep the dampening water system stable, and helpful for high-quality printing.

    Temperature control of the ink delivery system

    Achieved ink constant temperature, keep the ink tack & viscosity stable, improve the quality of printing through heating or refrigeration control system, it also has the memory storage function and read when necessary.

    Automatic blanket scrubbing device

    Multi-printing units blanket can be cleaned at the same time by one-button control, which can reduce workforce and saving about 19 minutes with normal wash time, get the higher efficiency and protect the environment.

    Test sheet management system

    Save workforce and improve efficiency by test sheet management system.

    Online monitoring

    Online video monitoring, monitoring the differences with self-learning function, and reject the unqualified products automatically, ensure the unqualified products do not flow into the next process.

    Automatic VAC Stack

    To achieve non-stop production, one box is used for collecting unqualified products, the other two boxes receive the sheet change-over freely. After meeting the set collection quantities, it can land and output the sheet automatically, when receiving the pallet and rising automatically to prepare for receiving the next sheet, without any operator set up. It's very intelligent and convenient.

    Automatic feeder of pallets

    The device completes collection and separation of the pallet automatically, feeder moves the pallet to the stacker position automatically, without any operator set up, It's very intelligent and convenient.
