Regenerative Thermal Oxidizer

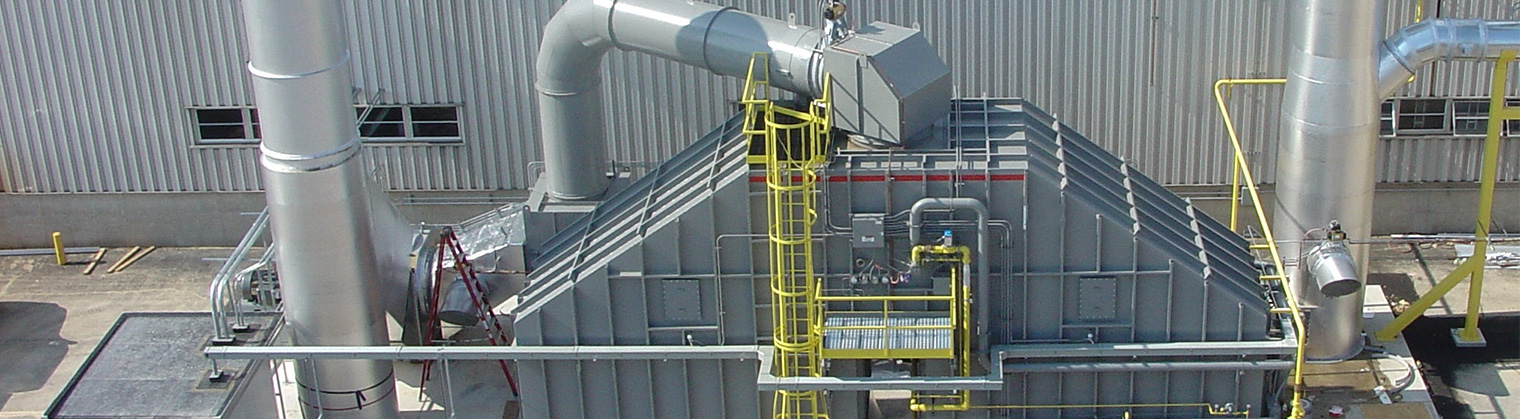

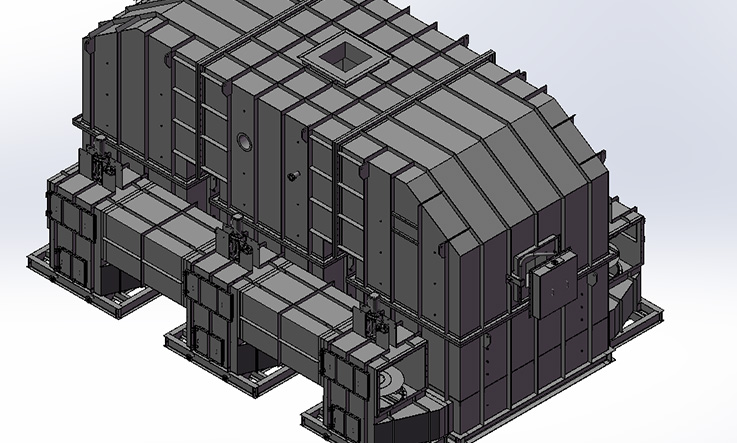

Regenerative Thermal Oxidizer (RTO)

Regenerative Thermal Oxidizer (RTO) produced by regenerative thermal oxidizer manufacturers which uses ceramic media to recover upwards of 97% of the available energy and is widely considered to be the most energy-efficient oxidizer. Its ability to repurpose the thermal energy generated during operation to reduce operating costs and energy consumption of the system itself make the RTO so popular widely. The regenerative component makes regenerative thermal oxidiser capable of fuel-free operation at very low VOC concentrations.

Get Quote

Benefits of the RTO Oxidizer

  • System pressure drop resulting in reduced electrical consumption

  • Multiple designs for easier and faster installation

  • Regenerative thermal oxidizer(RTO) has greater system flexibility and versatility

  • High reliability and long-life expectancy (15-20 years+)




Design Features of RTO Oxidizer

  • Pre-assembly, wiring, and testing as much as possible prior to shipment

  • Regenerative thermal oxidation can apply in the process of flowing up to 25% Lower Explosive Limits (LEL) with self-sustaining LELs as low as 3%

  • The burner is sized for full flow, zero process VOC emissions so that the RTO can maintain temperature and VOC destruction efficiency over the entire range of process operation

  • Bake-out capabilities designed to remove organic particulate buildup

  • Hinged access doors for ease of maintenance

  • Variable Frequency Drives (VFDs) to support high volumetric turn-down during low-process and idle conditions

  • Regenerative thermal oxidizer (RTO) compliances with FM Global and other international certifications

RTO Oxidizer Air Flow Range & Efficiency

  • Air Flow Range:3,000-70,000 SCFM (4,815-112,350 Nm3/hr) / Single Unit,70,000-500,000 SCFM (112,350-802,500 Nm3/hr) / Multiple Units

  • Concentration Range:0 – 25% LEL

  • Destruction & Removal Efficiency:99%+


RTO Oxidizer Air Flow Range & Efficiency
Regenerative Thermal Oxidizer (RTO)
